Hexagon concrete mould interlock brick molds

Almost 30 years all kinds of concrete block molds manufacturing experience;

80000 or 120000 cycle times for choice;hardness reach 62 degree after heat treatment.



  • Order(MOQ) :

    1 Set
  • Payment :

    T/T 100% payment before shipment or 100% by confirmed, irrevocable L/C at sight.
  • Product Origin :

    Quanzhou Fujian
  • Color :

    customize to demand
  • Shipping Port :

    Xiamen
  • Lead Time :

    20-25 days

Hexagon concrete mould interlock brick molds:

Brief introduction:

1. Block type:

We design and manufacture high quality steel molds to produce interlocking paving stones, slabs, permeable paving stones, curbstones, retaining walls, hollow and special blocks, always in accordance with our customers’ requirements and also proposing new and fresh ideas.

2. Raw material:

We use high-end special quenched and tempered steel imported from Italy in the manufacturing of concrete block molds. These steels are also made even more resistant to abrasion by heat treatment.

3. Manufacturing experience:

With all most 30 years manufacturing experience, we have customers from many countries.We add our experience to quality steelto make sure provide high quality products to all our buyers like Masa, Hess, Zenith, Tiger,  Bessel, Ritu and so on.

Technical data of our molds :

Name

hexagon paver mold

Heat treatment

Carbonitriding 900-950°C

raw material

special wear-resistant steel

Hardness

60-65HRC

Block type

Hollow block, interlocking block, paver block, kerbstone all can be customized

HS code

848060

lifespan

100000-120000 times

Packing

Wooden +plastic film



Mold features:

1. The most advanced assembly process.

A: advanced welding technology and de-stress treatment (if there is stress in the mold material, then the processed cavity and core will be deformed in the process of use, which will cause errors in the dimensions, shape and position tolerances in accordance with the drawings. it will make the already qualified products exceed the error value. Will make the already well-matched components become blocked and stuttered. It can't even be used. Therefore, the production of die steel requires a small amount of deformation during heat treatment. Tempering should be carried out after quenching to eliminate the internal stress caused by machining and heat treatment and ensure the normal use of the mold.

B: the press foot clearance related to the machine is 0.3-0.8mm.

C: standard parts and anti-loosening treatment of high strength connection bolts.

D: standardized assembly process for easy replacement of parts.

E: high quality wear resistant steel plate.

F: mold damping function.

G: realizable digital free surface design.



In order to ensure the durability of the mold, our mold goes through the following treatment: carbonitriding heat treatment (60-65HRC).

A: die frame and press foot hardening (60-65HRC).

B: minimum hardening depth 1.2mm.

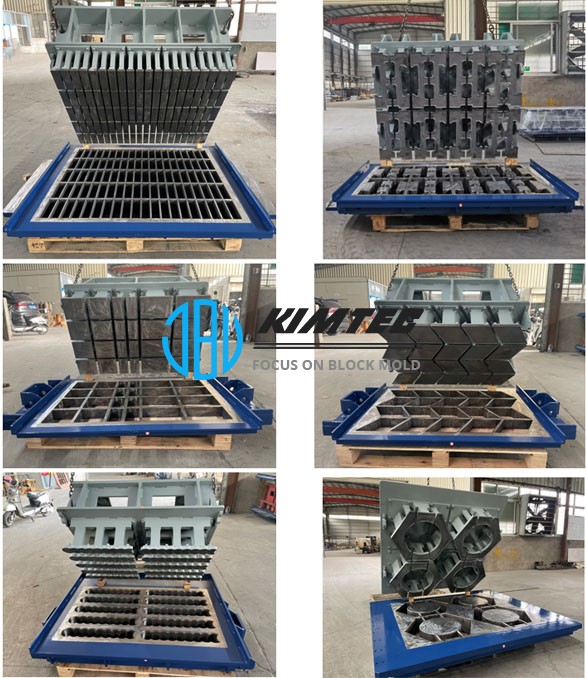

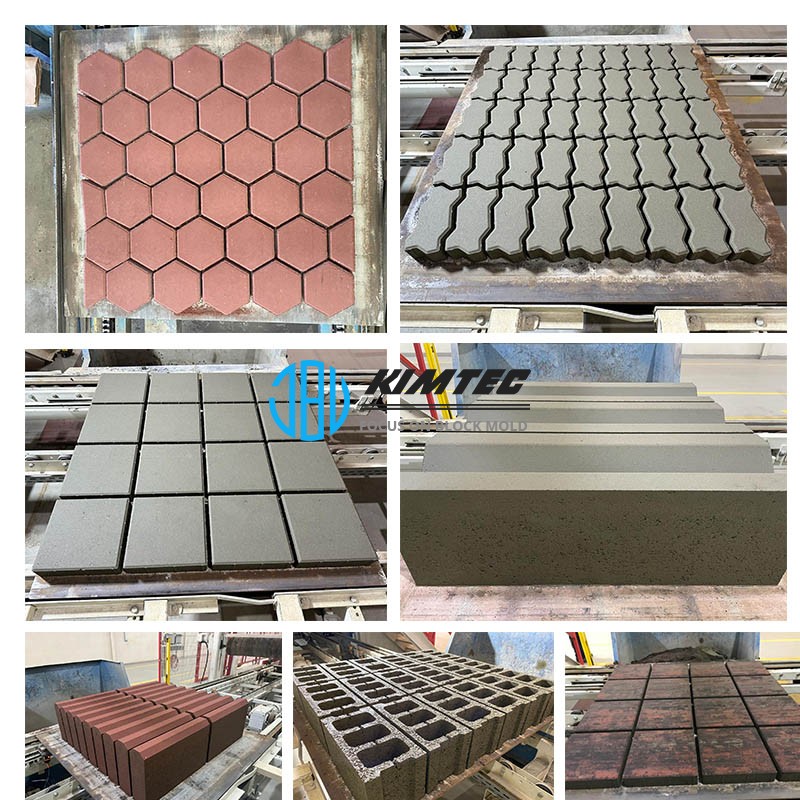

More types of blocks for you reference:

About our packing:

RFQ:

1.How I can get the quotations?

A. If you have detail drawings of the block you'll need, please send to us to check, we will quote to you as that.

B. If you don't have detail drawings, tell us what type of block you'll need, such as hollow block, solid block etc, take a pic of the block you'll need to us, and tell us the sizes include length*width*thickness by mm.

C. What size of  your pallet?

D. What size of your tamper head and the height of your down mold?

E. How your mold will be connected with your machine to work? If you have the connection drawing please provide it.

After getting your information we can quote for you ASAP.

2.How about delivery time:
20-25 work days for common block molds after receiving the deposit from the buyer, and for high-end block molds it needs 30-40 work days.



3.How about transport packing ?
Wooden packing with plastic film or as buyer's requirements!



4.Will the incoming mold be compatible with my machine?

We have been manufacturing many molds for different brands block machines, so we have their related records.  So maybe there are some of them are available for you.

In case of need, you can invite an engineer friend to your company to take measurements. Or, we can take a digital image of your mold by sending photos and taking measurements as many of our customers do.

After making sure of the sizing process, the mold we will send to you will be attached to your machine without any problemsDont worry about that!



5. How are the payment terms?

In order to complete your order, you will need to pay 50% advance by T/T and the rest must be paid before loading.



6. How to contact with you?

Contact with us by wechat/whatsapp: +86-1330506196  or  +86-18960287187  Thanks!
